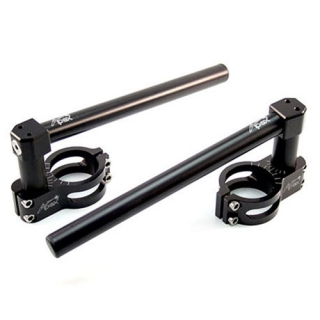

Apex 3" Riser Clip-on Set with 7/8" Bar

$229.00
Apex Riser Clip-ons are among the most versatile clip-on available to create optimal riding performance for all types of riding.
The unique design allows for simple installation and maximum adjustability so you can spend more time riding in comfort. This set includes everything you need for 1 motorcycle!
Size:
Color:
Quantity:
Riser Installation Download
Clipon Download

Apex Riser Clip-ons are among the most versatile clip-on available to create optimal riding performance for all types of riding. The unique design allows for simple installation and maximum adjustability so you can spend more time riding in comfort.

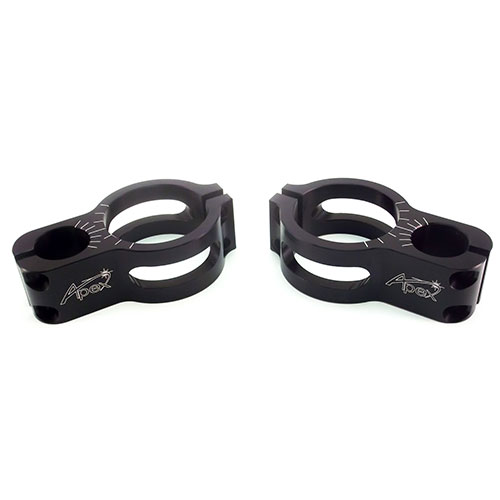

The clamp can be adjusted at any point on the 3" post, allowing you to go from a racing position, at the lowest adjustment, to a more comfortable cruising position with the highest rise adjustments. Some bike models require extended lines/cables in order to achieve the full potential rise.

Machined from 6061 billet aircraft aluminum makes these clip-ons ultra-light and strong for optimal performance.

The bar has a fixed 9° billet angle machined in the end with 8 radial adjustable positions to ensure your perfect custom fit and fine-tuning.

Fasteners are stainless steel. All pieces are anodized black with plastic inserts in the end of the bar. Bars are hollow, with no threads at the end of the bar and no pre-drilled holes.

Clip-ons are universal; there is no left or right side. Product ships pre-assembled.

Specifications

- 9 degree angle with 8 radial adjustable points
- Machined from 6061 billet aircraft aluminum
- Universal, no left or right side
- Anodized black

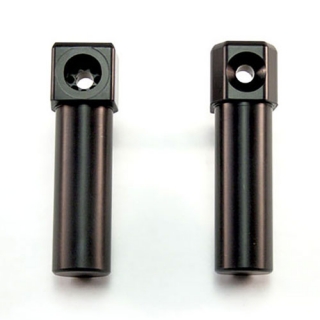

- Riser post measures 3"
- Stainless steel fasteners
- Bar Length: 9 5/8" (244.4mm)
- Bar Inner diameter: ¾" (19mm)
- Bar Outer diameter: 7/8/" (22.2mm)
- No pre-drilled holes in bars
- Bars are hollow, with no threads at end of bar

This set includes everything you need for 1 motorcycle!

Price per set!

100% Satisfaction Guarantee
If you are not entirely satisfied, simply return the product for a full refund.

Apexmfg clip-on bars are adjustable using a unique stainless steel locating pin which takes out any guess work and ensures a positive location from the following angles: 9*, 4.5*. 0*. -4.5*, -9*. The angle is also dictated by where the clamp is located on the fork tube.

Tony Carbajal recommends Apex Manufacturing Clip-Ons

Comments
markcorby, 10.20.2014
Will these touch the flyscreen on a Triumph S3 2010??
Alex Thompson, 06.01.2013
I've been using these clip ons for several months and they are great. I lowsided my r6 and the bar broke and it's only going to cost me 19 bucks to fix it. You really can't go wrong with the clip ons they are a perfect addition to any sport bike.
scullyways, 04.28.2013
I have an 02 R1 and put the 3" risers on. The brake line on the bike is the limiter as far as how much you can raise the bars. I set my angle at zero (which is still negative because of the fork angle) and put the clip ons nearly as high as the upper tripple tee, but the brake line became tight. Even with this setting, the bars are probably an inch higher than stock, and since they are flatter and wider, the seating position is a lot more comfortable! I did have to make a riser bracket for the master cylinder also to keep the brake fluid higher than the brake lever. I just took a piece of plastic and drilled holes to mount it higher. Took 30 min if that. Overall Im happy with the results, but I think it would be nice to have had access to more info on what needs changing to get lift. You cant get anywhere near 3" on a crotch rocket because the bars will hit the fairing/windshield with more than maybe a1-2inch lift. Turn your bars all the way to one side and measure the clearance between the bars and the fairing. Thats the max you can get. Unless you wont to cut plastics of course. But like I said the seating position is definitely better now! high speed cornering handling suffers the more you raise the bars, so be ware.
